Starlink on a standing-seam roof. No drilling, no parts from three catalogues.

No drilling into the roof — no voided roof warranty, no leak point. One part instead of three from three catalogues you have to match yourself. Built for the standing-seam metal roofs common across the Baltics, Nordics and DACH — Rheinzink, PREFA, NedZink and the Klassik profiles.

Choose your modelNot sure it fits? Check my seam

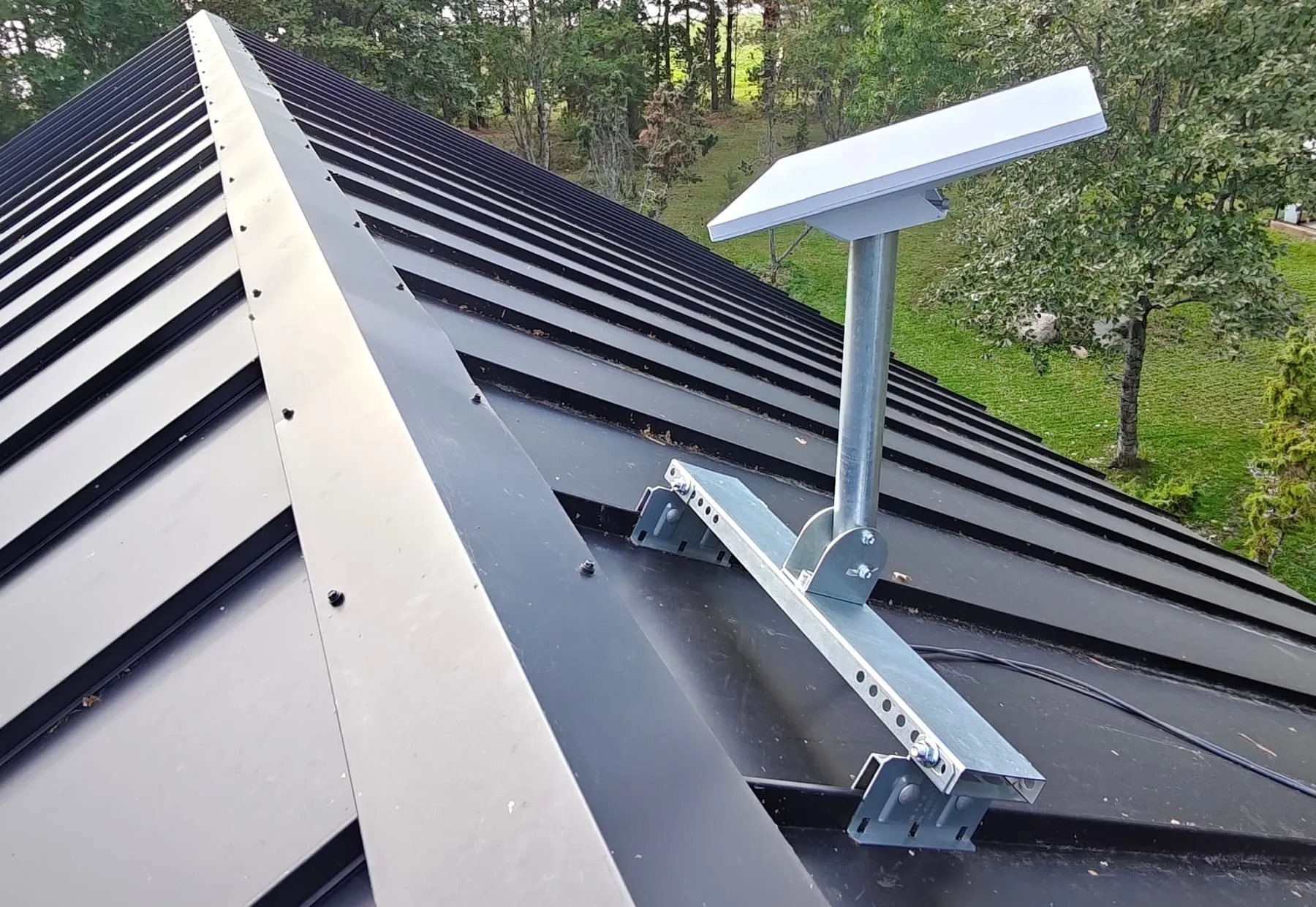

PHOTO — FALSMOUNT ON A STANDING-SEAM ROOFNO HOLES
A Starlink dish on a galvanised FalsMount mount clamped to the seams of a dark standing-seam metal roof
The clamps grip the standing seam itself — the plate spans two seams. The mount does not drill through the roof sheet (ridge screws already on the roof are separate).

Choose your model

Seam step is the distance between two seam folds. Measure yours, then pick Standard (270–550 mm) or XL (551–600 mm). On a narrow step the mount simply grips every second seam. Both models: seam height 23–37 mm.

Standard270–550 mm seam step€149View Standard →XL551–600 mm seam step€249Built to your seam stepView XL →

The mount

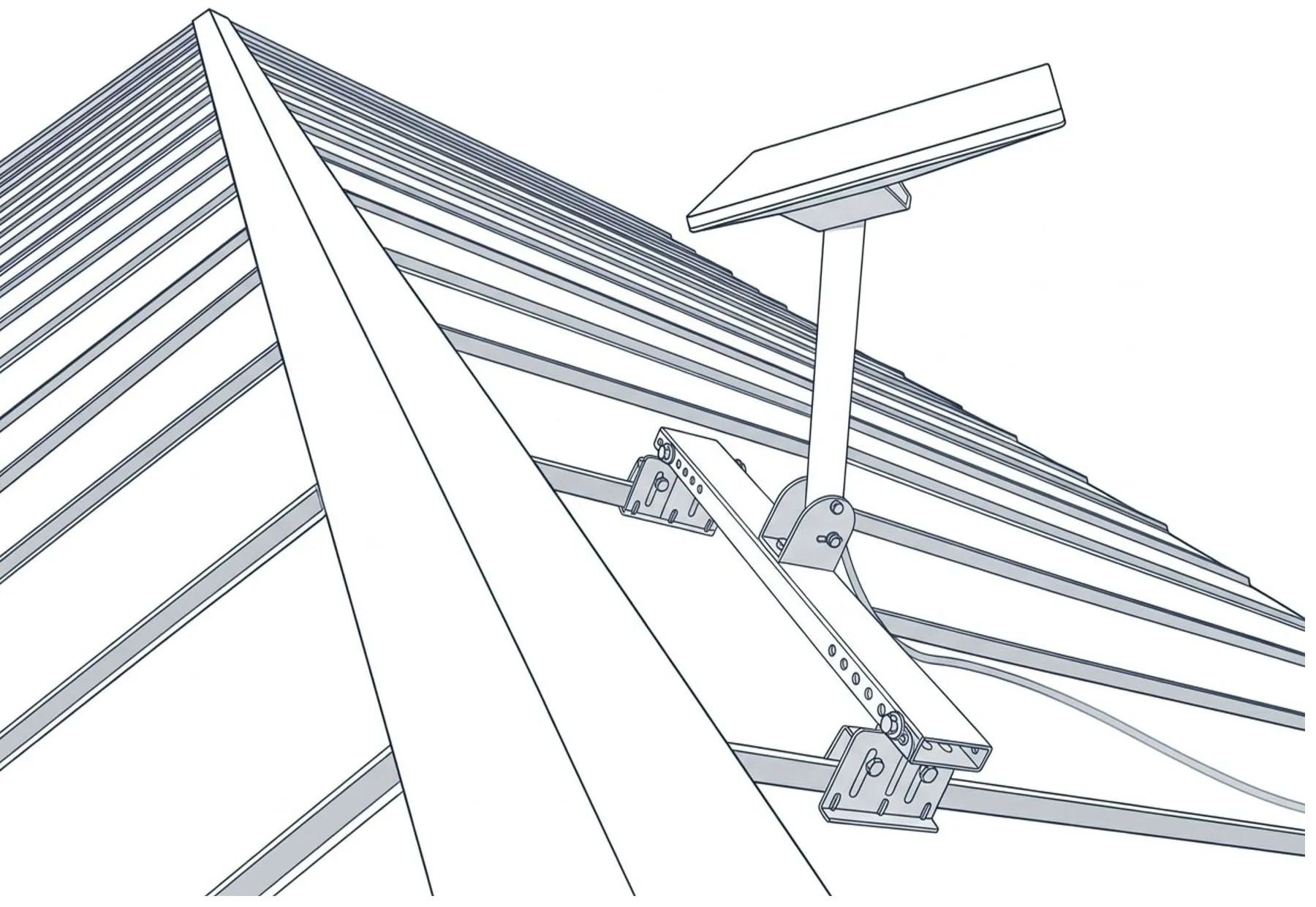

FIG. 1 — SEAM CLAMP + PIVOT ARM (3D MODEL)DRAG TO ROTATE
CAD assembly — seam clamp, adjustable pivot arm, and standing tube. Drag to rotate, scroll to zoom.
Roof interface
Non-penetrating seam clamp — no drilling
Seam step (cover width)
270–550 mm, Standard model. Above 550 mm is the XL variant
Seam height
23–37 mm, measured working range — see note
Roof-pitch compensation
0–45°, so the tube stands vertical
Starlink Dish compatibility
Mini, Standard, Performance
Materials
galvanized steel
Tube diameter
42.4 mm
Install
One person, hand tools, ~30 min
Ships from
Estonia (EU)
The clamp grips the standing-seam fold itself (Orima CHA077, made in Finland). We publish a measured working band for fold height of 23–37 mm with these clamps — our measurement, not yet a figure confirmed by Orima. Near either end of that band, send a photo and a measurement before ordering.Starlink pipe adapter: included in the Starlink Mini kit. For Standard and Performance it is not in the box and is sold separately in the Starlink shop. It fits our standing tube.Only the Orima clamps touch the roof; they are galvanised steel. The base plate sits clear of the roof sheet.

Which standing-seam roofs it fits

Standing seam is not one profile. The clamp grips the fold itself:

Fits — architectural / site-formed profiles
  • Rheinzink Doppelstehfalz — 400–550 mm seam step, 25 mm seam heightOutside: seam step 551–600 mm: XL variant
  • PREFA — 270–430 mm seam step, 25 mm seam height
  • NedZink — 430–550 mm seam step, 23–25 mm seam heightOutside: seam step 551–600 mm: XL variant
  • VMZINC — 270–550 mm seam step, 25–32 mm seam heightseam step 180–269 mm: fits, the mount grips every second seam
  • Klassik (Toode, Ruukki, Weckman, Plannja, Lindab) — 275–550 mm seam step, 25–37 mm seam heightOutside: seam step 551–600 mm: XL variant · seam height 38 mm: too tall for the clamp
The ranges above are what FalsMount supports, not the manufacturers' full catalogue ranges. A roof from one of these brands outside its range above is listed as outside.
Seam step under 270 mm: the mount grips every second seam, so count double the spacing.
Does not fit — industrial profiles
  • Kalzip — 305 / 400 mm seam step, ~65 mm seam height
  • BEMO N50 / N65 — 100–800 mm seam step, 50 / 65 mm seam height
Some industrial profiles (e.g. Kalzip, BEMO N50/N65) sit outside the clamp and plate ranges we support. We would rather say no than sell a mount that will not work.
Not sure which you have? Measure the distance between two seam folds (the step) and the height of the fold itself, then send both to hello@falsmount.com.

Choose your model →

Two numbers decide fit

Two numbers to check: fold height (mm) and seam step (mm). Fold height should sit in our published working band for the Orima CHA077 clamps; seam step picks Standard vs XL. Some industrial profiles (e.g. Kalzip, BEMO N50/N65) sit outside the ranges we support — we would rather say no than sell a mount that will not work.

Email photo + numbers →

Already know which you need? Standard · XL
